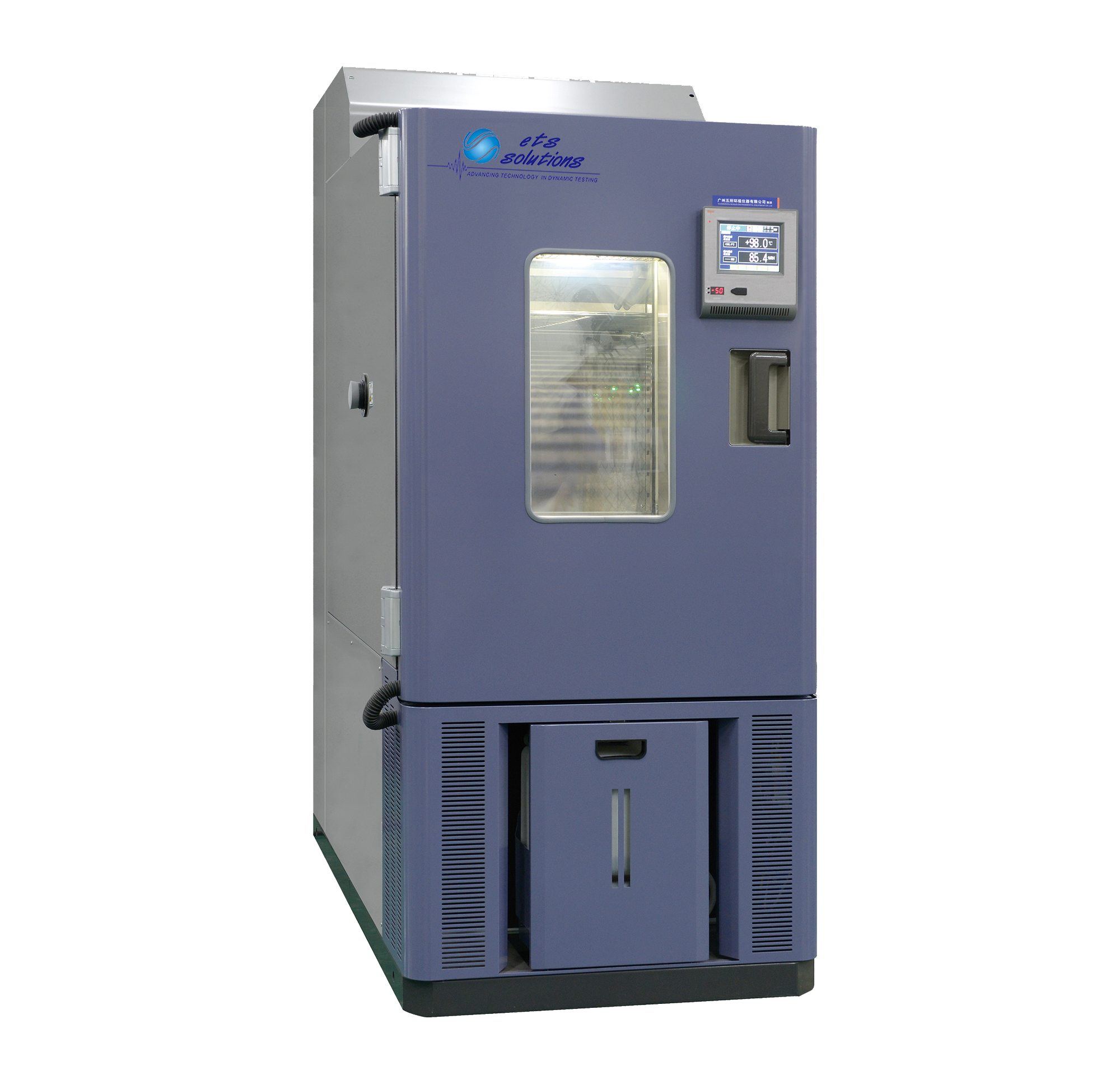

T(H) Series
Climatic Test Chamber I

Test Space Volume
200L, 400L and 1000L (7.1, 14.1 and 35.3 ft3)

Temperature Range
T(H)0220A/W T(H)0420 A/W T(H)1020 A/W: -20°C to +150°C
T(H)0240 A/W T(H)0440 A/W T(H)1040 A/W: -40°C to +150°C
                          T(H)0470 A/W T(H)1070 A/W: -70°C to +150°C

Humidity Range
(20-98)%RH/ (10-98)°C

Features
•  Compact chamber size saving valuable floor space
•  Intelligent refrigeration control system
•  Visually attractive with large windows
•  Low noise
•  Enhanced temperature and humidity performance
•  High brightness LED light with long useful life
•  Bilateral cable ports available
•  Multiple independent over-temperature protection
•  Specimen power supply control terminal
•  5.7-inch TFT color touch screen program controller
•  Environmentally friendly refrigerant
•  RS-485/Ethernet centralized monitoring(optional)
•  GPIB interface (optional)
